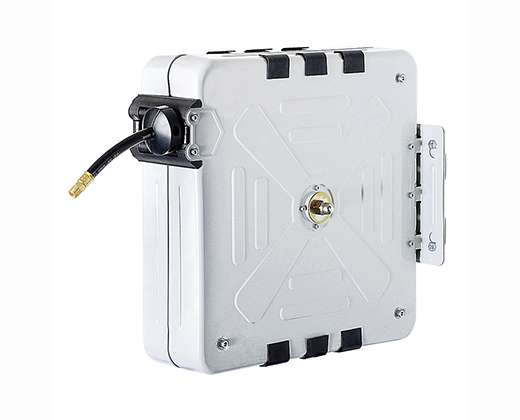

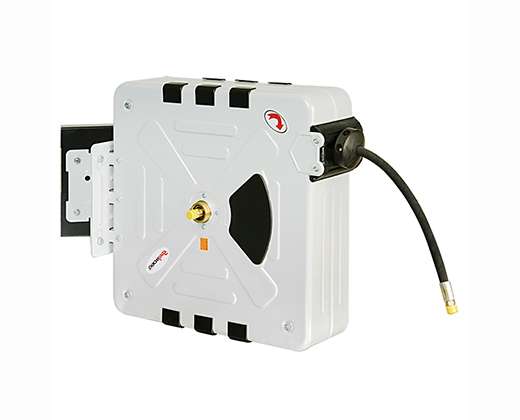

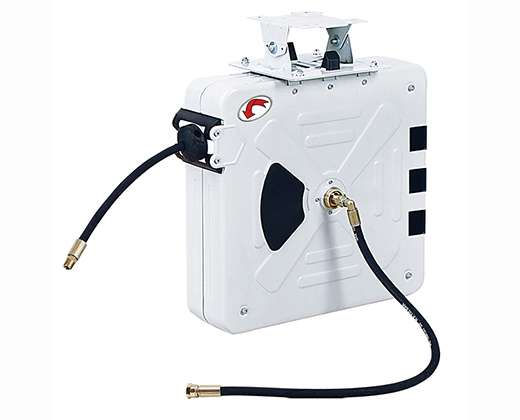

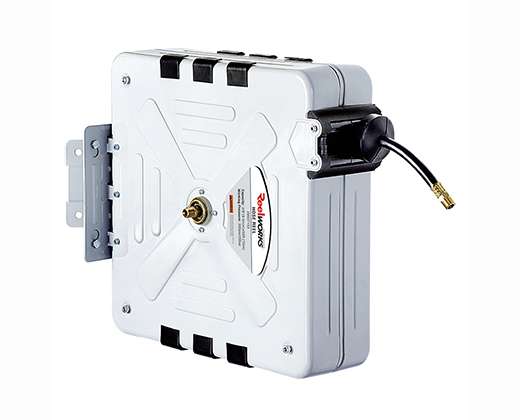

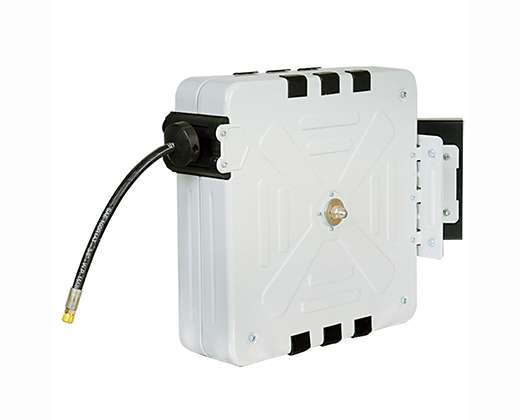

SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 50'/15m
Max Pressure5800PSI/400Bar
Inlet/OutletUp to 1/2"
Description
-
Perfect for application in industries, vehicle repair & maintenance workshops
-
Spring tension easily adjustable from the outside
-
Designed to transfer air, water, oil and grease
-
Compact size and easy installation
-
Simple hose replacement without dismantling the reel
-
60"/1.5m lead-in hose
Key Features
-
Hose StopperAutomatically stops retracting hose for safety
-
Long Service SwivelHigh quality stress free swivel assures long service life
-
Hose ReplacementSimple hose replacement without dismantling the reel
-
Reinforced Steel FlangeThe steel-stamped flange is reinforced for strength
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR950.02 | 3/8" | 50'/15m | 300PSI/20Bar | 3/8" | NPT | NBR | Air/Water |
| HR950.03 | 1/2" | 50'/15m | 300PSI/20Bar | 1/2" | NPT | NBR | Air/Water |
| HR950.07 | 1/2" | 50'/15m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
| HR950.08 | 1/4" | 50'/15m | 5800PSI/400Bar | 1/4" | NPT | SAE R2 | Grease |
| HR950.10 | 3/8" | 15m | 20Bar | 3/8" | BSPT | NBR | Air/Water |
| HR950.11 | 1/2" | 15m | 20Bar | 1/2" | BSPT | NBR | Air/Water |
| HR950.14 | 3/8" | 15m | 180Bar | 3/8" | BSPT | SAE R1 | Oil |
| HR950.01 | 1/2" | 15m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
| HR950.15 | 1/4" | 15m | 400Bar | 1/4" | BSPT | SAE R2 | Grease |
| HR950.16 | 3/8" | 15m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
Recommended Accessories
-

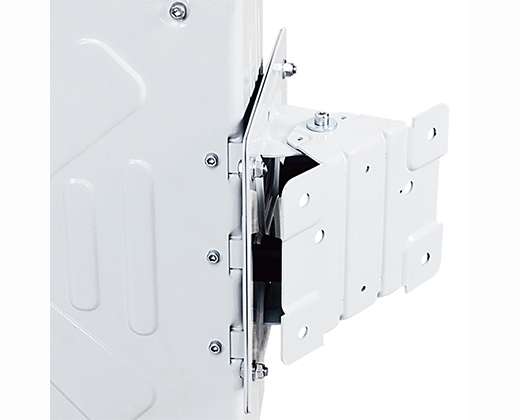

110° Swivel Base Wall and floor mounting
