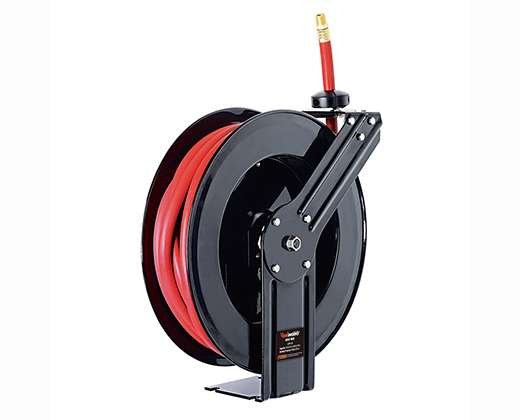

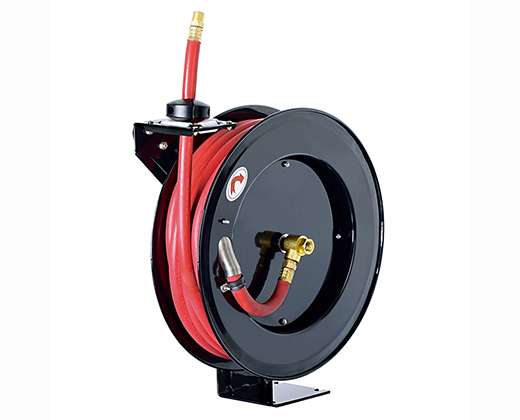

SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 65'/20m
Max Pressure300PSI/20Bar
Inlet/OutletUp to 1/2"
Description
-
Steel construction with corrosion resistant powder coating
-
Full flow solid swivel joint
-
Multi-position release ratchet spring fully enclosed
-
Four direction non-snog rollers reduce hose wear abrasion
-
Wall, ceiling or floor mount
Key Features
-
Non-Snag RollerFour direction rollers reduce hose wear abrasion
-

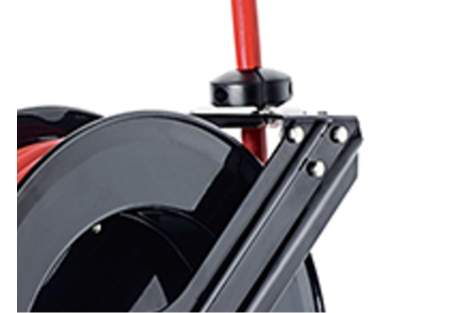

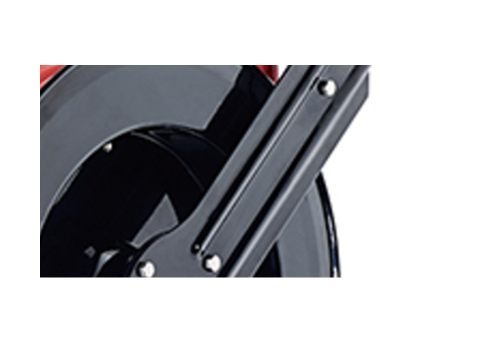

Reinforced SteelThe steel-stamped guide arm is reinforced to reduce any angular pull
-

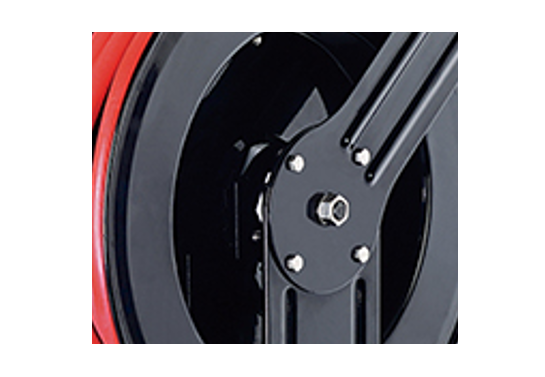

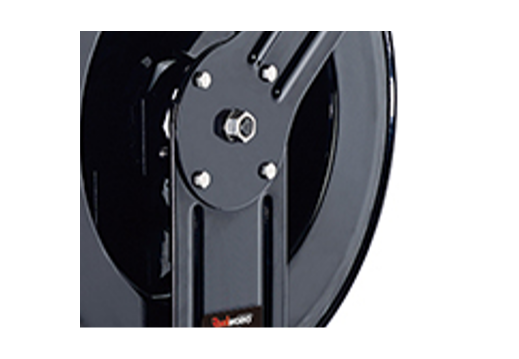

Enclosed Drive SpringSpring eliminates possibility of damage due to reverse winding
-
Corrosion-ResistantHeavy-duty steel construction with corrosion resistant powder coating
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR801.05 | 3/8" | 65'/20m | 300PSI/20Bar | 1/4" | NPT | Hybrid Polymer | Air/Water |
| HR801.07 | 3/8" | 50'/15m | 300PSI/20Bar | 3/8" | NPT | Rubber | Air/Water |
| HR801.09 | 1/2" | 50'/15m | 300PSI/20Bar | 1/2" | NPT | Rubber | Air/Water |
| HR801.11 | 3/8" | 65'/20m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
HR801.14 | 3/8" | 20m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR801.15 | 1/2" | 15m | 20Bar | 1/2" | BSPT | Hybrid Polymer | Air/Water |
| HR801.16 | 1/2" | 20m | 20Bar | 1/2" | BSPT | Hybrid Polymer | Air/Water |
Recommended Accessories
-
BR0103：140° Pivot Wall Bracket for Optional
