HR826

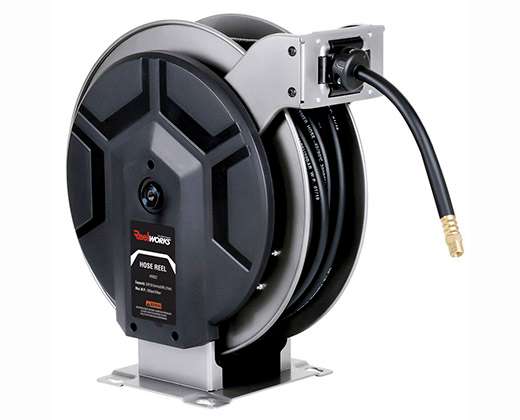

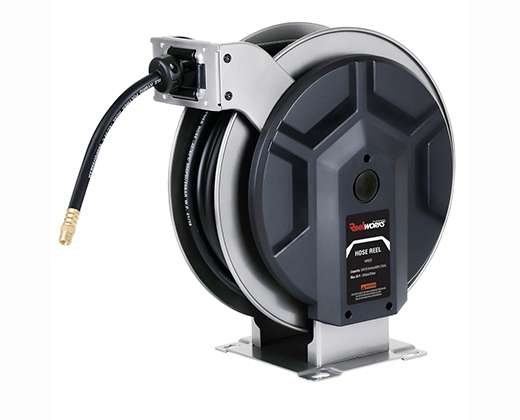

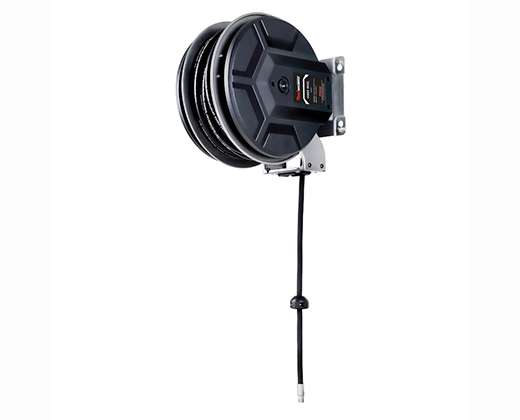

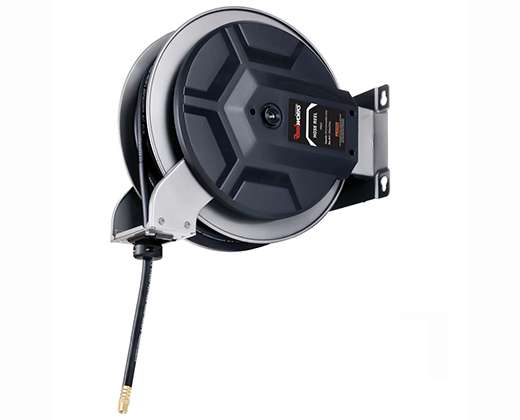

DOUBLE GUIDE ARM SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 65'/20m
Max Pressure4800PSI/330Bar
Inlet/OutletUp to 1/2"
Request A Quote
Description
-

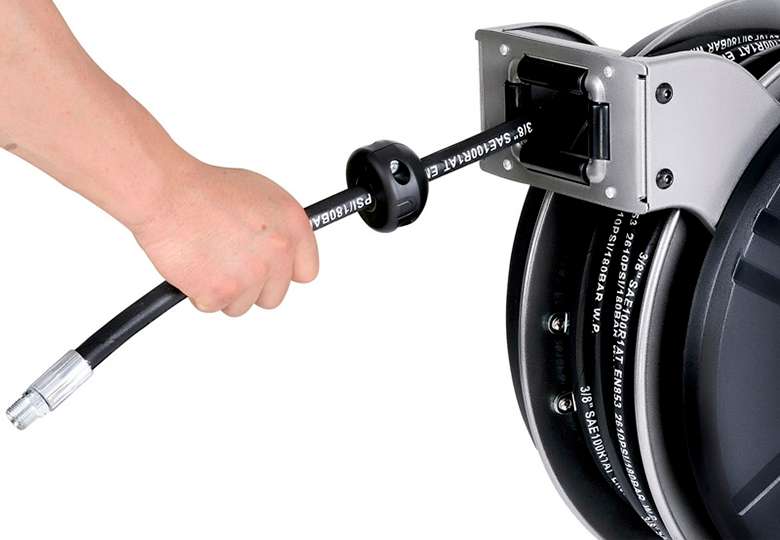

Hose can be stopped at any point as users desire
-
With more secure experience, the retraction time is twice slow than usual
-
Modular design makes inventory and maintenance more convenient
Key Features
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR826.02 | 3/8" | 65'/20m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR826.04 | 1/2" | 65'/20m | 300PSI/20Bar | 1/2" | NPT | Hybrid Polymer | Air/Water |
| HR826.08 | 3/8" | 65'/20m | 2610PSI/180Bar | 3/8" | NPT | SAE R1 | Air/Water |
| HR826.09 | 1/2" | 65'/20m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
| HR826.11 | 3/8" | 65'/20m | 4800PSI/330bar | 3/8" | NPT | SAE R2 | Oil |
| HR826.12 | 3/8" | 20m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Grease |
| HR826.14 | 1/2" | 20m | 20Bar | 1/2" | BSPT | Hybrid Polymer | Air/Water |
| HR826.15 | 3/8" | 20m | 20Bar | 3/8" | BSPT | NBR | Air/Water |
| HR826.16 | 3/8" | 20m | 20Bar | 3/8" | BSPT | NBR | Air/Water |
| HR826.17 | 1/2" | 20m | 20Bar | 1/2" | BSPT | NBR | Air/Water |
| HR826.18 | 3/8" | 20m | 180Bar | 3/8" | BSPT | SAE R1 | Oil |
| HR826.19 | 1/2" | 20m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
| HR826.20 | 1/4" | 20m | 400Bar | 1/4" | BSPT | SAE R2 | Grease |
| HR826.21 | 3/8" | 20m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
| HR826.22 | 3/8" | 20m | 180Bar | 3/8" | BSPT | SAE R1 | Water |
