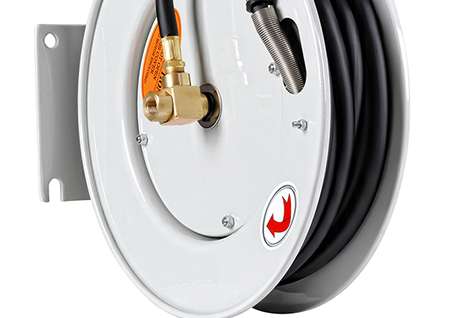

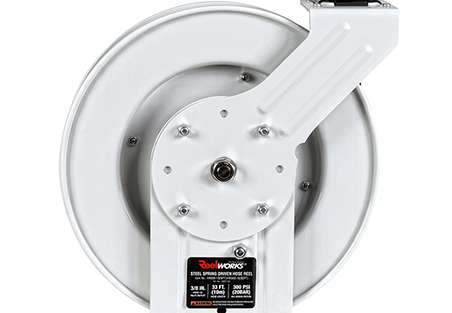

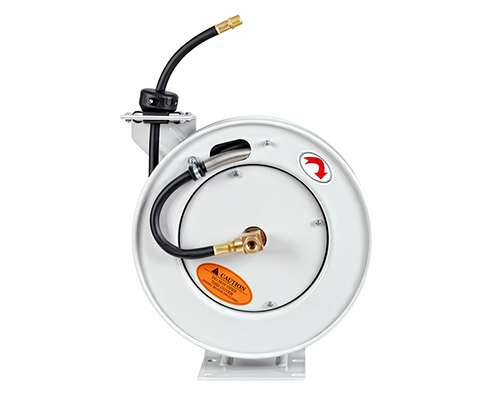

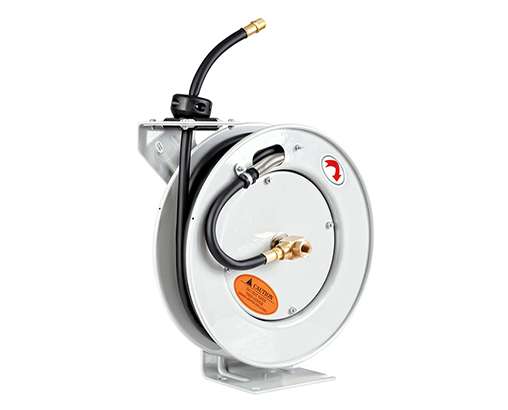

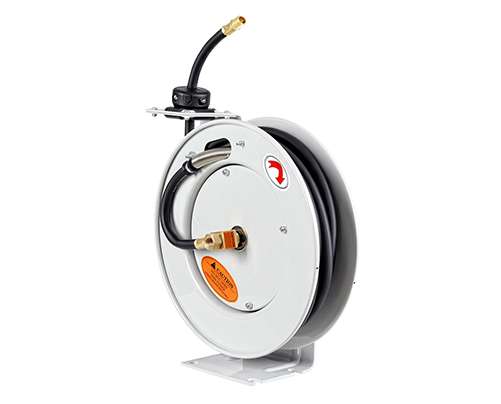

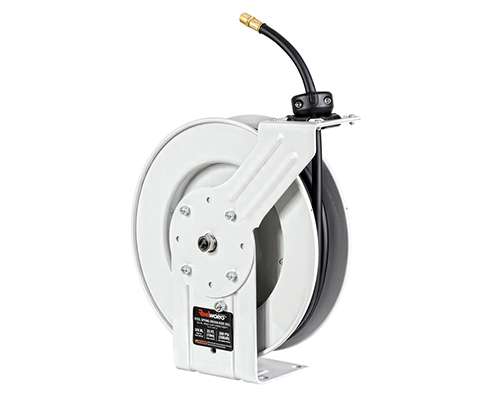

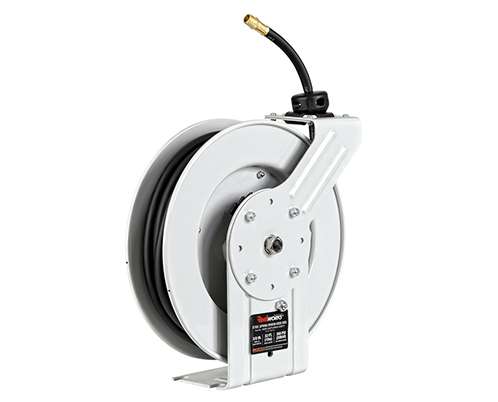

STEEL SPRING DRIVEN HOSE REEL
Hose I.D.Up to 3/8"
Hose LengthUp to 33'/10m
Max Pressure400Bar
Inlet/OutletUp to 3/8"
Description
-
Designed for air, water, oil and grease applications
-
6-1/2" / 165mm wide L-Shaped base with groove reinforcement ensures stable support
-
Four direction non-snag rollers reduce hose wear abrasion
-
Multi-position locking ratchet
-
Adjustable guide arm
Key Features
-

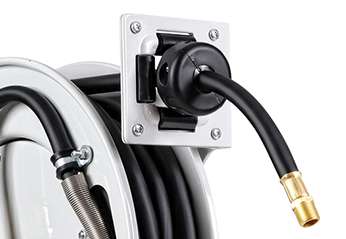

Non-Snag RollerFour direction rollers reduce hose wear abrasion
-
Adjustable Guide ArmMultiple guide arm positions provide versatile uses and easier field adjustment
-
Finished with QualityOur components undergo a strict cleaning processand are powder-coated for the highest quality paint adhesion
-
Corrosion-ResistantHeavy-duty steel construction with corrosion resistant powder coating
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR809.07 | 3/8" | 33'/10m | 300PSI/20Bar | 3/8" | NPT | Rubber | Air/Water |
| HR809.13 | 3/8" | 33'/10m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR809.18 | 3/8" | 25'/7.5m | 2610PSI/180Bar | 3/8" | NPT | SAE R1 | Oil |
| HR809.08 | 1/4" | 10m | 20bar | 1/4" | BSPT | Rubber | Air/Water |
| HR809.09 | 3/8" | 8m | 20Bar | 3/8" | BSPT | Rubber | Air/Water |
| HR809.10 | 3/8" | 10m | 20Bar | 3/8" | BSPT | Rubber | Air/Water |
| HR809.15 | 3/8" | 8m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR809.16 | 3/8" | 10m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR809.20 | 3/8" | 8m | 180Bar | 3/8" | BSPT | SAE R1 | Oil |
| HR809.23 | 1/4" | 8m | 400Bar | 1/4" | BSPT | SAE R2 | Grease |
| HR809.24 | 3/8" | 8m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
Recommended Accessories
-
BR0102: 140° Pivot Wall Bracket for optional -
BR0201: 360° Pivot Floor Base for optional
