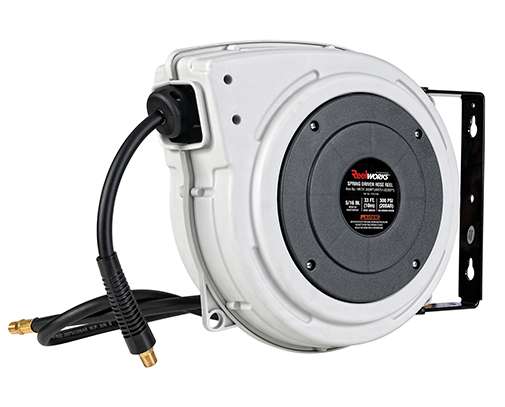

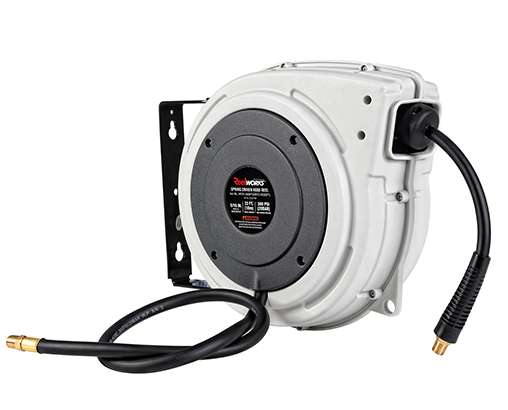

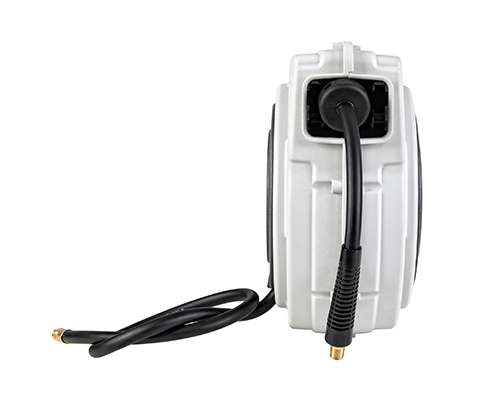

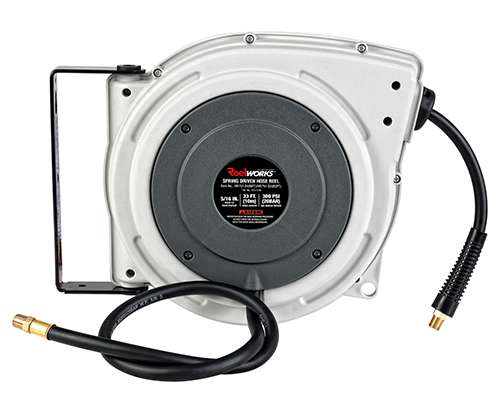

SPRING DRIVEN HOSE REEL
Hose I.D.Up to 3/8"
Hose LengthUp to 50'/15m
Max Pressure300PSI/20Bar
Inlet/OutletUp to 3/8"
Description
-
Hybrid polymer hose
Superior bend radius help eliminate kinks, no memory -
Structure strength
High quality plastic housing and stronger components for durable use -

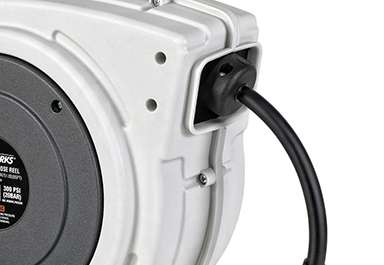

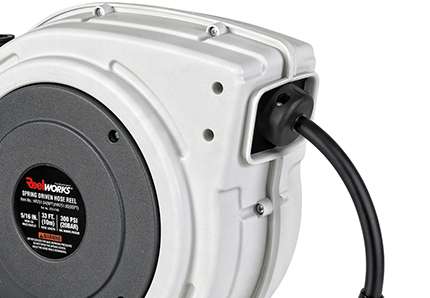

Sealed connection points
Newly designed swivel and hose inlet connections seal against leaks -
Improved ratch
Double adjustment function, lock the hose any desired length also adjust non-locking position
Key Features
-
Adjustable Hose StopperSafety retracts and stops hose
-
Hybrid Polymer HoseSuperior bend radius help eliminate kinks no memory
-
Improved RatchDouble adjustment function, lock the hose any desired length
-
Structure StrengthHigh quality plastic housing and stronger components for durable use
-
Hose Include36"/0.9m lead-in supply hose included
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR751.03 | 1/4" | 50'/15m | 300PSI/20Bar | 1/4" | NPT | Hybrid Polymer | Air/Water |
| HR751.05 | 3/8" | 30'/9m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR751.09 | 1/4" | 10m | 20Bar | 1/4" | BSPT | Hybrid Polymer | Air/Water |
| HR751.07 | 1/4" | 15m | 20Bar | 1/4" | BSPT | Hybrid Polymer | Air/Water |
| HR751.02 | 5/16" | 10m | 20Bar | 5/16" | BSPT | Hybrid Polymer | Air/Water |
| HR751.10 | 5/16" | 15m | 20Bar | 5/16" | BSPT | Hybrid Polymer | Air/Water |
| HR751.08 | 3/8" | 9m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
