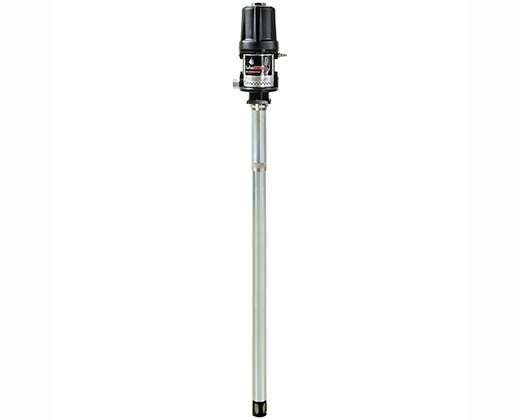

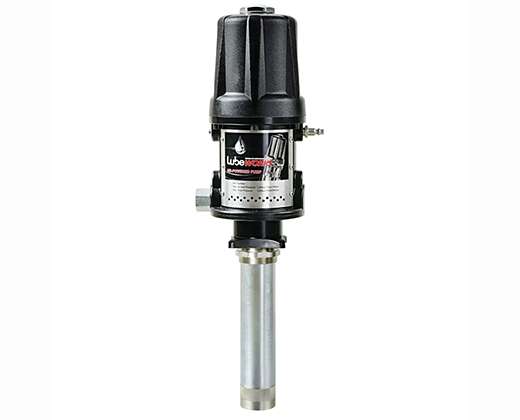

HEAVY DUTY AIR-OPERATED OIL PUMP
Length270mm, 730mm, 940mm, 1190mm
Pressure Ratio3:1
Max Flow Rate45L/m
Description
-
The 3:1 is perfect for fluid oil transfer in high volume and longer distance applications such as truck shop service fleet facilities and in-plant applications
-
Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life
-
Few moving parts in the air motor assembly means less downtime and low repair cost
-
Large air porting design provides efficient use of compressed air supply for continuous pump operation without icing
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| LP121.02 | Oil | BSP Quick Plug | Carbon Steel | 270mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.06 | Oil | BSP Quick Plug | Carbon Steel | 730mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.14 | Oil | BSP Quick Plug | Carbon Steel | 1190mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.03 | Oil | BSP Quick Plug | Stainless Steel | 270mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.01 | Oil | BSP Quick Plug | Stainless Steel | 1190mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.04 | Oil | NPT | Carbon Steel | 270mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.12 | Oil | NPT | Carbon Steel | 940mm | 3/4"BSP Female | 3:1 | 45L/m |
| LP121.16 | Oil | NPT | Stainless Steel | 1190mm | 3/4"BSP Female | 3:1 | 45L/m |
