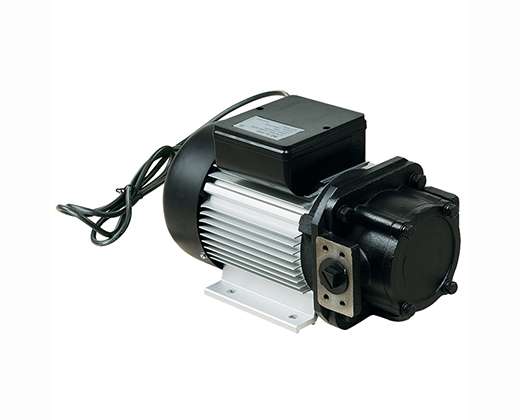

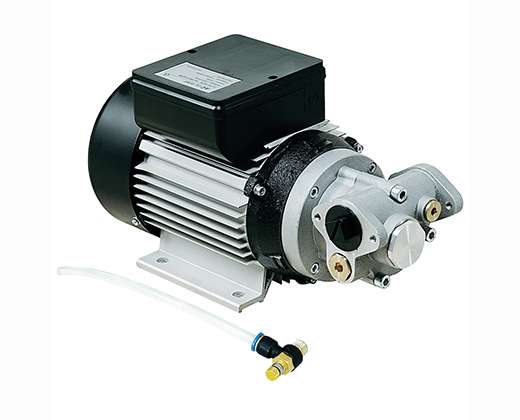

GEAR OIL PUMP
Volts230V
Max Flow Rate9LPM, 14LPM
Working Pressure12Bar, 25Bar
Description
-
Internal gear electric pumps for the various requirements of pumping oils and lubricants
-
Die-cast aluminum pump body, Sintered steel gears
-
By-pass integrated into the pump body
-
Rugged inlet cage withstands demanding shop environments
-
Viscosity up to 10,000 SUS (Saybolt Universal Second)/2000Cst
-
Suction height: 2m/6.5ft
-
Not for waste oil
Technical Data
| Item No. | Application | Plug | Volts | Power | Max Flow Rate | Working Pressure | Inlet/Outlet |
| LP601.03 | Gear Oil | European | 230V | 750W | 9LPM | 12Bar | 1"BSP |
| LP601.01 | Gear Oil | European | 230V | 1000W | 9LPM | 25Bar | 1"BSP |
| LP601.04 | Gear Oil | European | 230V | 1000W | 14LPM | 12Bar | 1"BSP |
