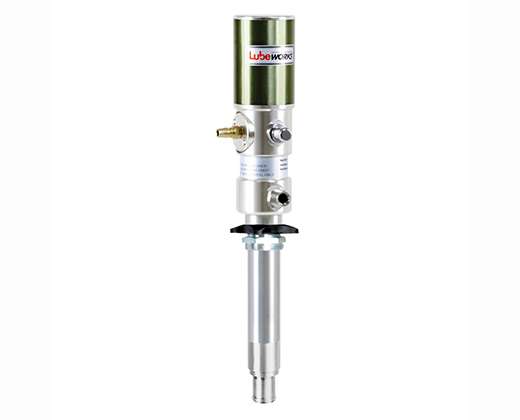

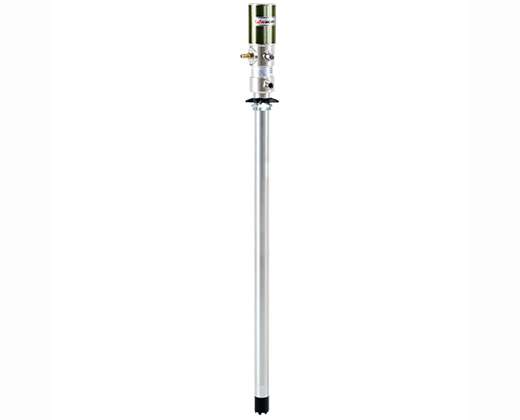

AIR OPERATED OIL TRANSFER PUMP
Length270mm, 730mm, 940mm
Pressure Ratio3:1
Max Flow Rate12L/M
Description
-
Air operated for integration into transfer system
-
Smart design with fewer parts for less pump wear & tear
-
Differential air motor ensures smooth pumping
-
Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid
-
Double action
-
Supplied with adjustable 2'' bung adapter
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| LP115.01 | Oil | BSP Quick Plug | Carbon Steel | 730mm | 1/2"BSP | 3:1 | 12L/M |
| LP115.02 | Oil | BSP Quick Plug | Carbon Steel | 270mm | 1/2"BSP | 3:1 | 12L/M |
| LP115.03 | Oil | BSP Quick Plug | Carbon Steel | 940mm | 1/2"BSP | 3:1 | 12L/M |
| LP115.04 | Oil | NPT | Carbon Steel | 270mm | 1/2"NPT | 3:1 | 12L/M |
| LP115.05 | Oil | NPT | Carbon Steel | 730mm | 1/2"NPT | 3:1 | 12L/M |
| LP115.06 | Oil | NPT | Carbon Steel | 940mm | 1/2"NPT | 3:1 | 12L/M |
