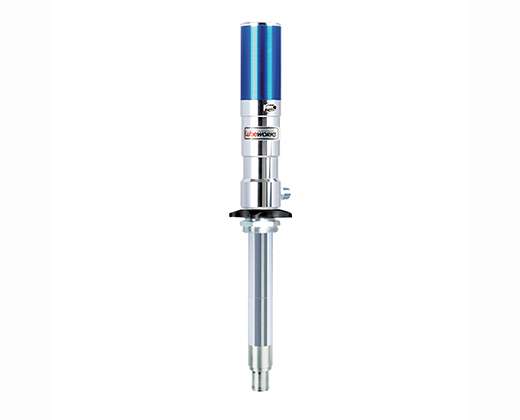

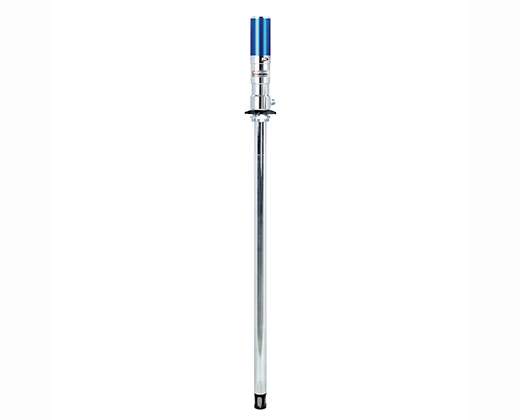

LP102
AIR-OPERATED OIL PUMP
Length270mm, 730mm, 940mm
Pressure Ratio3:1
Max Flow Rate20L/m
Request A Quote
Description
-
Light weight, high efficient, double acting
-
Smart design with fewer parts for less pump wear & tear
-
Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid
-
Supplied with adjustable 2" bung adapter
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| LP102.04 | Oil | BSP Quick Plug | Carbon Steel | 270mm | 1/2"BSP | 3:1 | 20L/m |
| LP102.05 | Oil | BSP Quick Plug | Carbon Steel | 730mm | 1/2"BSP | 3:1 | 20L/m |
| LP102.06 | Oil | BSP Quick Plug | Carbon Steel | 940mm | 1/2"BSP | 3:1 | 20L/m |
| LP102.07 | Oil | NPT | Carbon Steel | 270mm | 1/2"BSP | 3:1 | 20L/m |
| LP102.08 | Oil | NPT | Carbon Steel | 730mm | 1/2"BSP | 3:1 | 20L/m |
| LP102.09 | Oil | NPT | Carbon Steel | 940mm | 1/2"BSP | 3:1 | 20L/m |
