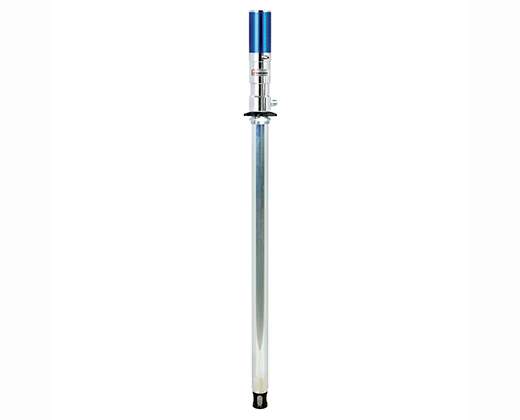

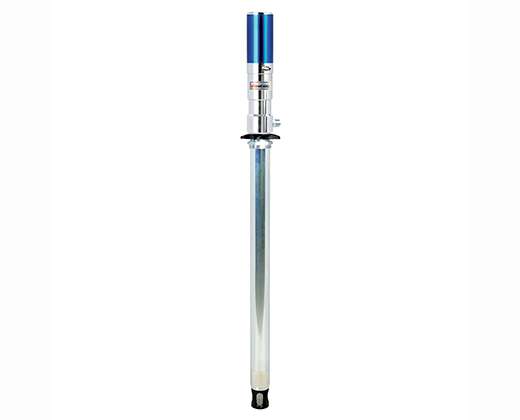

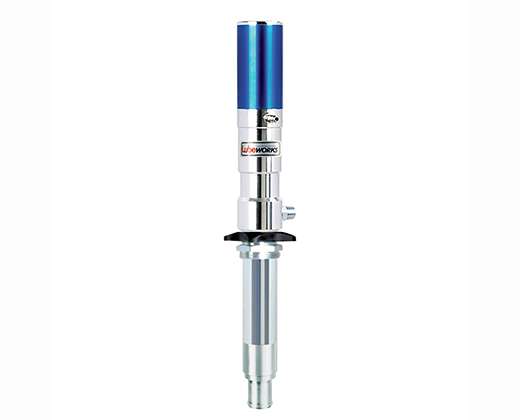

AIR-OPERATED OIL PUMP
Length270mm, 730mm, 940mm
Pressure Ratio1:1
Max Flow Rate35L/m
Description
-
Light weight, high efficient, double acting
-
Smart design with fewer parts for less pump wear & tear
-
Differential air motor ensures smooth pumping
-
Supplied with adjustable 2'' bung adapter
-
The carbon steel: typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid
-
The stainless steel: besides above typical fluids, can pump low to moderately viscous liquids, such as antifreeze/coolant, windshield washing, weak acid and alkalis chemical products
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| LP101.01 | Oil | BSP | Carbon Steel | 270mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.02 | Oil | BSP | Carbon Steel | 730mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.03 | Oil | BSP | Carbon Steel | 940mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.04 | Oil | BSP | Stainless Steel | 270mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.05 | Oil | BSP | Stainless Steel | 730mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.06 | Oil | BSP | Stainless Steel | 940mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.10 | Oil | BSP Quick Plug | Carbon Steel | 270mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.11 | Oil | BSP Quick Plug | Carbon Steel | 730mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.12 | Oil | BSP Quick Plug | Carbon Steel | 940mm | 1/2"BSP | 1:1 | 35L/m |
| LP101.13 | Oil | BSP | Carbon Steel | 270mm | 1/2"NPT | 1:1 | 35L/m |
| LP101.14 | Oil | BSP | Carbon Steel | 730mm | 1/2"NPT | 1:1 | 35L/m |
| LP101.15 | Oil | BSP | Carbon Steel | 940mm | 1/2"NPT | 1:1 | 35L/m |
| LP101.18 | Oil | BSP Quick Plug | Stainless Steel | 940mm | 1/2"BSP | 1:1 | 35L/mr |
| LP101.23 | Oil | BSP | Stainless Steel | 940mm | 1/2"NPT | 1:1 | 35L/m |
