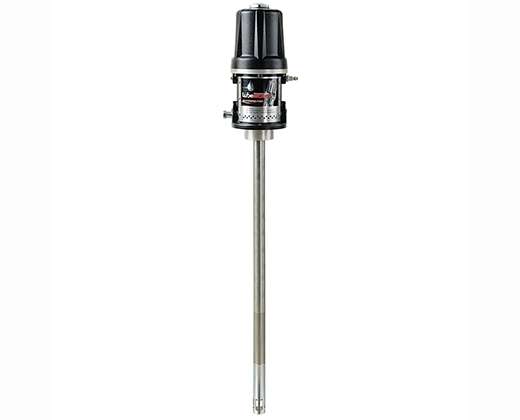

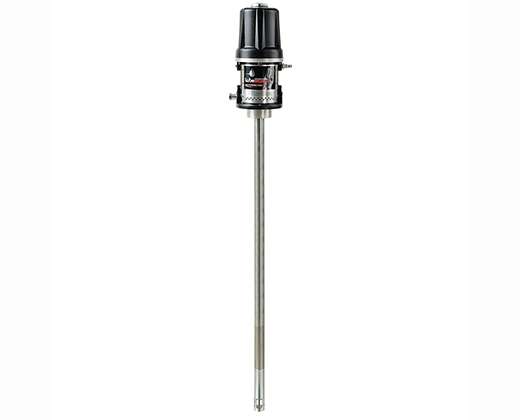

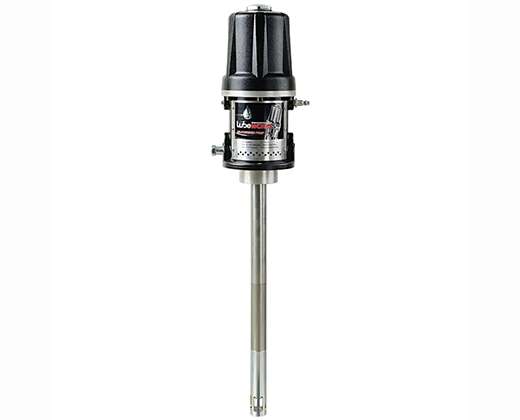

HEAVY DUTY AIR-OPERATED GREASE PUMP
Pressure Ratio75:1
Max Flow Rate1600g
Description
-
The LP113 High Volume Grease Transfer Pump from Intradin is engineered for high-demand manufacturing and automotive service facilities.
-
Designed for manufacturing or automotive service facilities
-
75:1 ratio allows grease to be pumped up to NLGI #2
-
Double acting pump provides continous flow operation
-
Rugged inlet cage withstands demanding shop environments
-
Full line of stationary and portable package configurations
-
High flow capability, stable function
-
Our high volume grease transfer pump offers flexibility to meet your setup needs. Inquire today to learn more about how the LP113 high volume grease transfer pump can support your facility's needs!
Technical Data
| Item No. | Application | Air Inlet | Length | Fluid Outlet | Pressure Ratio | Inlet Size | Max Flow Rate |
| LP113.01 | Grease | Quick Plug (European) | 480mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.02 | Grease | Quick Plug (European) | 740mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.03 | Grease | Quick Plug (European) | 940mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.04 | Grease | NPT | 480mm | 3/8"NPT | 75:1 | 1/4" | 1600g |
