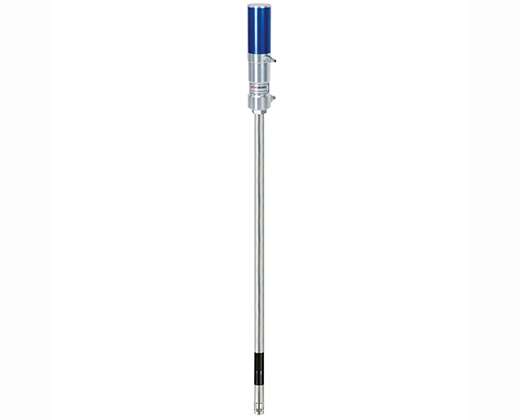

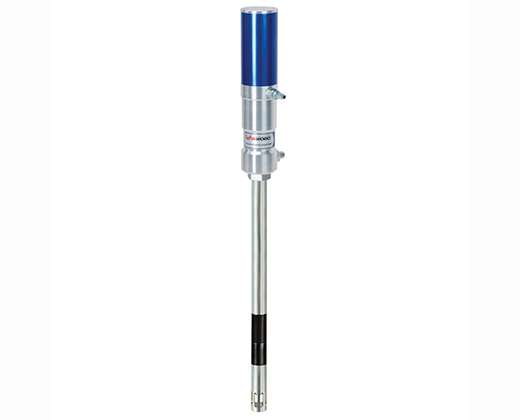

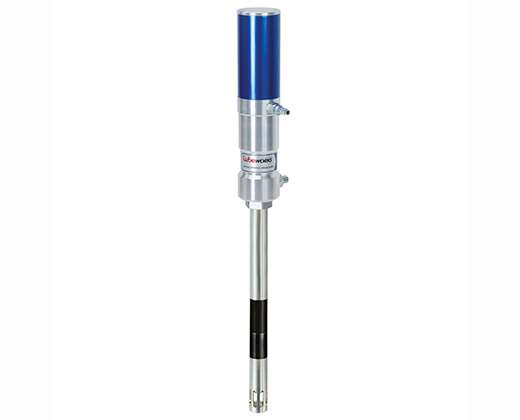

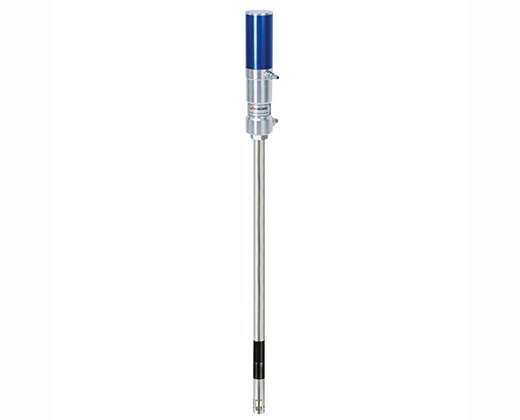

HEAVY DUTY AIR-OPERATED GREASE PUMP
Pressure Ratio50:1
Max Flow Rate800g
Description
-
Typical Application: high pressure grease dispenser
-
50:1 ratio allows grease to be pumped up to NLGI #2 (Refer to appendix 2)
-
For dispensing grease of all types short and long distance at high pressure
-
Non-corrosive design for long time use
-
Compatible with integrated lubrication system
-
Compatible with different sizes of grease drum in the market
-
Less components;compact construction
-
With less air consumption and higher efficiency.
-
Patent No.: ZL201721650766.X
Technical Data
| Item No. | Application | Air Inlet | Length | Fluid Outlet | Pressure Ratio | Inlet Size | Max Flow Rate |
| LP104.17 | Grease | Quick Plug (European) | 480mm | 1/4"BSPT | 50:1 | 1/4" | 800g |
| LP104.11 | Grease | Quick Plug (European) | 740mm | 1/4"BSPT | 50:1 | 1/4" | 800g |
| LP104.12 | Grease | Quick Plug (European) | 940mm | 1/4"BSPT | 50:1 | 1/4" | 800g |
| LP104.13 | Grease | NPT | 370mm | 1/4"NPT | 50:1 | 1/4" | 800g |
| LP104.15 | Grease | NPT | 740mm | 1/4"NPT | 50:1 | 1/4" | 800g |
| LP104.16 | Grease | NPT | 970mm | 1/4"NPT | 50:1 | 1/4" | 800g |
