New

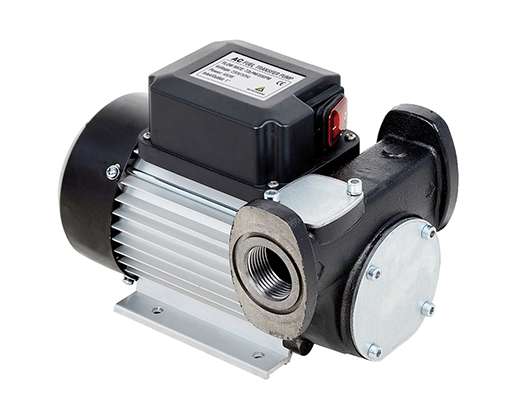

AC DIESEL PUMP
Power200W
Inlet/Outlet 1"
Flow Rate15Gal./min, 56L/min
Description
-
Powerful, dependable and economical self priming diesel transfer pump with 120V/230V AC motor
-
Equipped with by-pass valve to prevent motor overload
-
Cast iron pump body with anti-corrosion treatment and paint
-
Ease of installation make your maintenance much more convenient
-
Motor: Asynchronous motor, single-phase, closed type (protection class IP55), self-ventilated
-
Temperature: M" -20°C/Max.+60°C
-
Relative Humidity: Max.90%
-
Suction height: 2.5M/8ft
Technical Data
| Item No. | Application | Thread Type | Voltage | Plug | Power | Inlet/Outlet | Flow Rate |
| FP531.01 | Fuel（Not Incl. Petrol） | NPT | AC120V | American | 200W | 1" | 29PSI/2Bar |
| FP531.02 | Fuel（Not Incl. Petrol） | BSP | AC120V | European | 200W | 1" | 2Bar |
| FP531.03 | Fuel（Not Incl. Petrol） | NPT | AC120V | American | 200W | 1" | 29PSI/2Bar |
