New

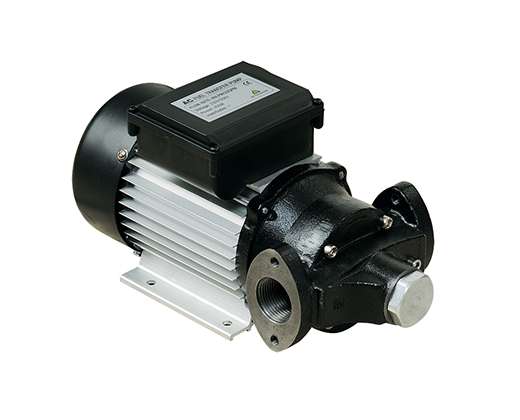

AC DIESEL PUMP
Power1100W
Inlet/Outlet 1"
Flow Rate120L/min, 32Gal./min
Description
-
Powerful, dependable and economical self priming diesel transfer pump with 120V/230V AC motor
-
Equipped with by-pass valve to prevent motor overload
-
Cast iron pump body with anti-corrosion treatment and paint
-
Ease of installation make your maintenance much more convenient
-
Motor: Asynchronous motor, single-phase, closed type (protection class IP55), self-ventilated
-
Temperature: M" -20°C/Max.+60°C
-
Relative Humidity: Max.90%
-
Suction height: 2.5M/8ft
Technical Data
| Item No. | Application | Thread Type | Voltage | Plug | Power | Inlet/Outlet | Flow Rate |
| FP533.01 | Fuel（Not Incl. Petrol） | BSP | AC230 | French | 1100W | 1" | 120L/min |
| FP533.02 | Fuel（Not Incl. Petrol） | BSP | AC230 | German | 1100W | 1" | 120L/min |
| FP533.03 | Fuel（Not Incl. Petrol） | BSP | AC230 | Australian | 1100W | 1" | 120L/min |
| FP533.04 | Fuel（Not Incl. Petrol） | NPT | AC230 | American | 1100W | 1" | 32Gal./min |
