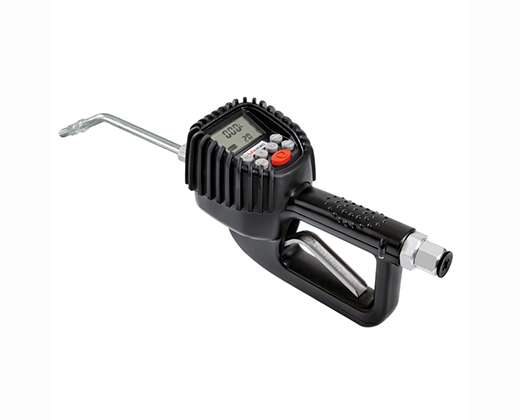

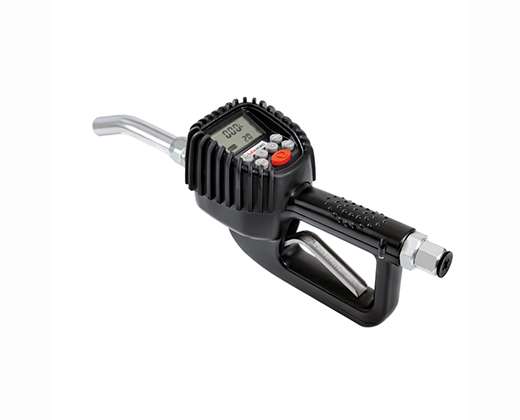

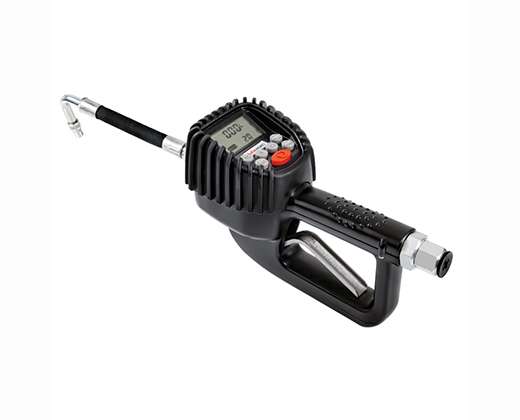

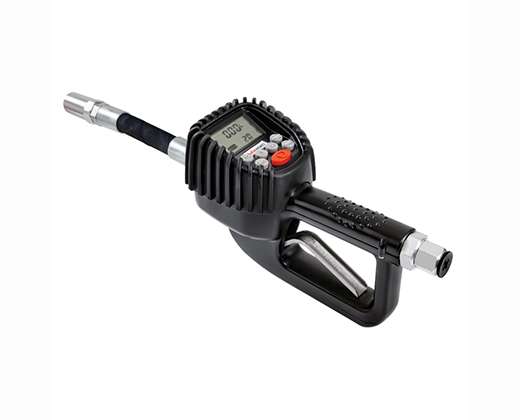

DIGITAL OIL PRESET CONTROL VALVE
ExtentionRigid, Flexible
NozzleAutomatic, Manual
Flow Range35L/m, 55L/m
Description
-
Powered by 4 AA batteries, and the replacement is more convenient
The working time are 2-4 times longer than the normal digital control valve -
Display screen 25% larger than normal one; Backlight design for easy viewing
-
With the function of view the historical data of the previous five dispensing
-
The newly design memory function, make the quick & equivalent filling possible
-
Maximum single dispense 999.99, Maximum preset dispense 999
Technical Data
| Item No. | Application | Inlet | Extention Type | Nozzle Type | Flow Range | Working Pressure |
| LN120.01 | Oil | BSP3/4" | Rigid | Automatic | 55L/m | 70Bar |
| LN120.02 | Oil | BSP1/2" | Rigid | Manual | 35L/m | 70Bar |
| LN120.03 | Oil | BSP1/2" | Rigid | Automatic | 35L/m | 70Bar |
| LN120.04 | Oil | BSP1/2" | Flexible | Automatic | 35L/m | 70Bar |
| LN120.05 | Oil | NPT1/2" | Rigid | Manual | 35L/m | 1000PSI/70Bar |
| LN120.07 | Oil | NPT1/2" | Flexible | Automatic | 35L/m | 1000PSI /70Bar |
| LN120.08 | Oil | BSP3/4" | Rigid | N/A | 55L/m | 70Bar |
| LN120.09 | Oil | BSP3/4" | Flexible | Automatic | 55L/m | 70Bar |
