FM206

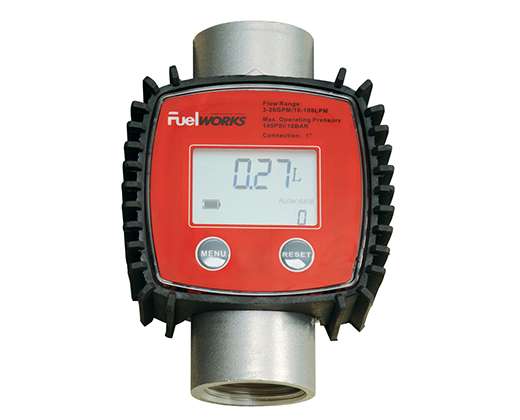

TURBINE DIGITAL METER
InletBottom
Inlet/Outlet1"
Flow Range5-32Gal./m, 20-120L/m
Request A Quote
Description
-
Simple, reliable, small and economical
-
Turbine measuring system
-

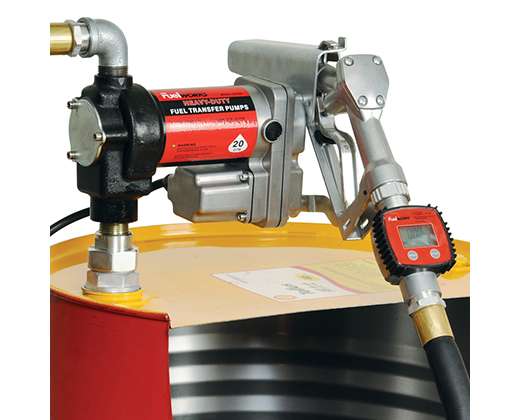

Easy to install either in line or at the end of the delivery hose
-
5-digit readout, resettable total available
-
Meter accuracy ±1%
Key Features
-

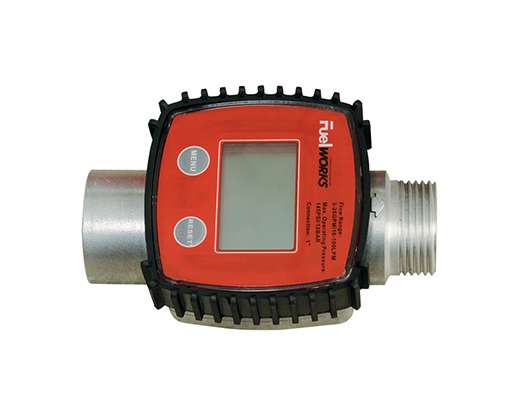

Inlet-Outlet Thread Option: F-M -

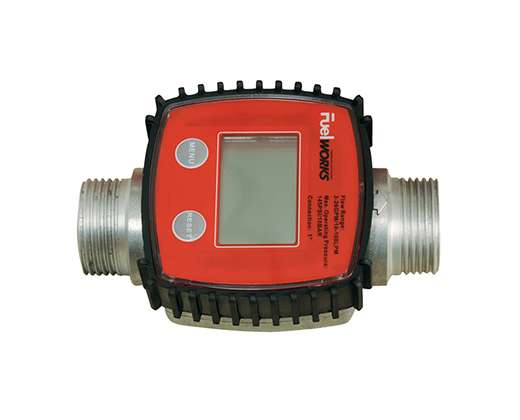

Inlet-Outlet Thread Option: M-M
Technical Data
| Item No. | Application | Inlet-Outlet Thread Type | Inlet | Material | Inlet/Outlet | Flow Range |
| FM206.03 | Fuel | F-F (NPT) | Bottom | Aluminum | 1" | 5-32Gal./m |
| FM206.19 | Fuel | F-F (BSP) | Bottom | Aluminum | 1" | 20-120L/m |
| FM206.23 | Fuel | F-M (BSP) | Bottom | Aluminum | 1" | 20-120L/m |
| FM206.31 | Fuel | M-F (BSP) | Bottom | Aluminum | 1" | 20-120L/m |
